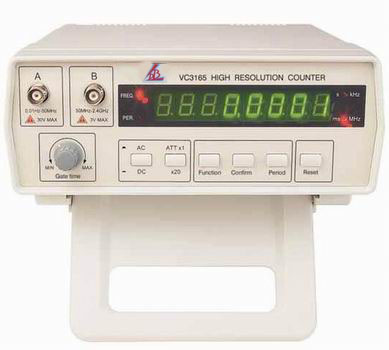

Intelligent Frequency/Resolution Counter(0.01Hz - 2.4GHz)VC3165

Intelligent Frequency/Resolution Counter(0.01Hz - 2.4GHz)VC3165 <br> <img src="https://sep.turbifycdn.com/ty/cdn/ldb-cdpackaging/sale.jpg?t=1754613932&" height="40" width="40">
Item# VC3165
Regular price: $130.00
Sale price: $125.00, 2/$240.00, 4/$460.00

Product Description

Hurry up..Offer Limited..!!

Key Features..!!
Contents
Based on microprocessor.
Frequency, period and equal-precision measurement.
8 digit LED display.
Range from 0.01Hz to 2.4GHz.
stability and low cost.
Convenient and safe to operate.


Specifications..!!
1) CH. A (0.01Hz - 50MHz)
Frequency:DC couple 0.01Hz to 100Hz,
AC couple 100Hz to 50MHz
Sensitivity:DC 0.01Hz to 1Hz less than 500m Vp-p
AC 100Hz to 50MHz less than 80m Vrms
1Hz to 100Hz less than 80m Vrms
2) CH.A (50MHz- 2.4GHz)
Frequency:50MHz to 2.4GHz
Sensitivity:50MHz to 1.2 GHz less than 80m Vrms
1.2GHz to 2.4GHz more than 80m Vrms
3) Resolution:depends on gate time control setting.
4) Precision:standard time error (t) x frequency (f) +1d
5) Power supply:220V/110V
6) Weight: 1.6kg
7) Dimension:270mm x 215mm x 100mm
Packing list:Manual, power cord and test probe.


CLICK THE BUTTON TO DOWNLOAD MANUAL
